$117.00
SKU:
84-0120
Weight:
0.14 LBS
Shipping:
Calculated at checkout
Quantity:

Product Description

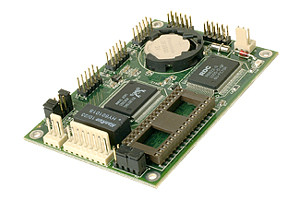

Adding control and TCP/IP connectivity to your product has become cheaper and easier than ever before with our new picoFlash embedded single board computer with Ethernet. Its small size and extremely aggressive pricing make it a perfect fit for your cost and space-sensitive applications.

On a form factor slightly larger than a credit card, we've implemented a 40MHz x86 DOS computer. The system features ½ megabyte each of RAM and Flash memory, two serial ports, battery-backed clock calendar, 10Base-T Ethernet and a socket for optional M-Systems DiskOnChip products. Also included on the board are 16 bits of digital I/O, a watchdog timer, RS-485 and TTL serial port I/O, and LCD and keypad drivers.

The picoFlash single-board controller comes with preloaded DOS operating system and all the utilities you need to start development. Our low-cost development kit contains a full copy of Borland C/C++, the WatTCP TCP/IP stack, and the source code for a number of TCP/IP clients and servers including HTTP, TFTP, FTP, Telnet and PPP.

The pico-I/O expansion board stacks on top of the picoFlash adding 32 digital inputs, 20 digital outputs, and 11 channels of 12 bit analog inputs without the need for extra cabling. A standard 9-pin ribbon cable can be used on the pico-I/O to provide access to the picoFlash Serial Debug Port. To facilitate your application development, a library of C and Quickbasic functions is supplied.

Extremely cost-effective single board computer with Ethernet, 40MHz processor, 16 digital I/O, 2 serial ports, and RTC
(84-0120)
